Motion Dynamics Corporation is an experienced, privately held company that manufactures precision wire components, springs, and wire assemblies.  Our specialties include capabilities with fine and ultra fine wire diameters as well as unique alloy types and shapes.

We only produce custom components therefore we do not stock any product.  We manufacture to the highest standards, from quick prototypes to large quantity production, for the Medical, Electronics, Aerospace and Military Industry or any market needing the perfect custom wire component.

PTFE Coated Mandrels & Wire

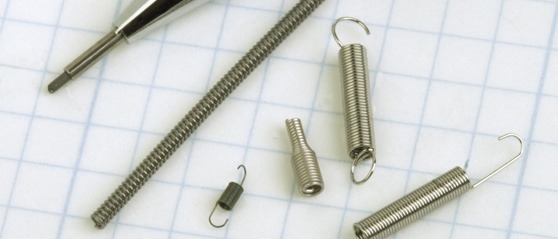

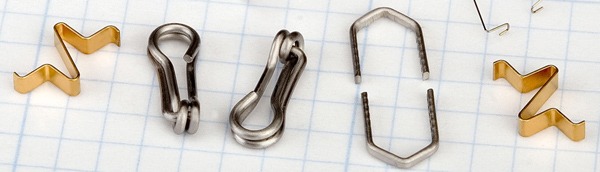

Coils / Wireforms

Catheter Reinforcement Coils:
  • Quick Turn Programs
  • Round, Flat, and Square Material
  • Discrete Lengths Up to 10 ft.
  • End Conditions: Open, Closed, Ground Flat, Tapered
  • Heat Shrink Application
  • Laser Welded Reinforcement Wires
  • PTFE Coated Material

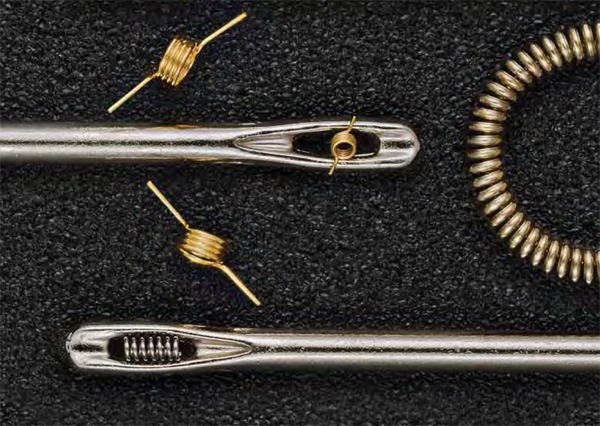

Micro-coils, Helixes and Garter/Contact Springs:
  • Variable Pitch and Diameter
  • Custom End Configurations
  • Laser Formed Radius or Ball Ends
  • IS1, IS4, & DF1 Compatible Contact Springs
  • Laser Weld or Crimp Attachment to Hypotube, Wire, or
  • Machined Components
  • Shape Set Coils to Desired Geometry

Material Capabilities:

Diameter Range

  • Material – 0.0005” – 0.125”
  • Coil Diameter <0.004”, Coil Index < 3

Common Materials

  • Au, W, PtIr, PtW, Ta, Ag
  • 302 Series, 304 Series, 316 Series, etc.
  • Titanium
  • Tungsten, Gold Plated Tungsten
  • Beryllium Copper – Including Pre-Plated Material
  • Nickel Titanium – Nitinol
  • Cobalt/Chromium Alloys
